Trend H/JIG/C Skeleton Hinge Jig

Trend H/JIG/C Skeleton Hinge Jig

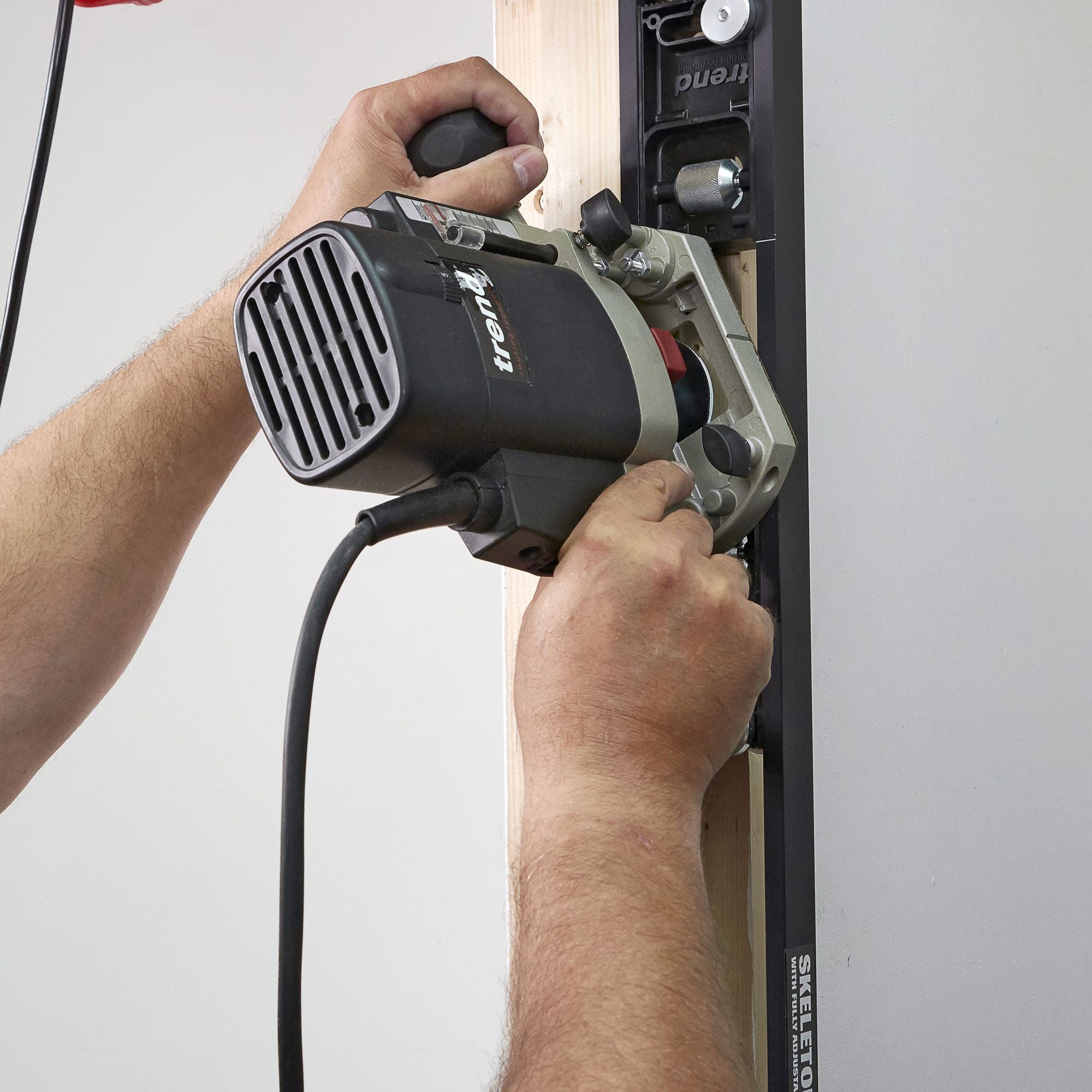

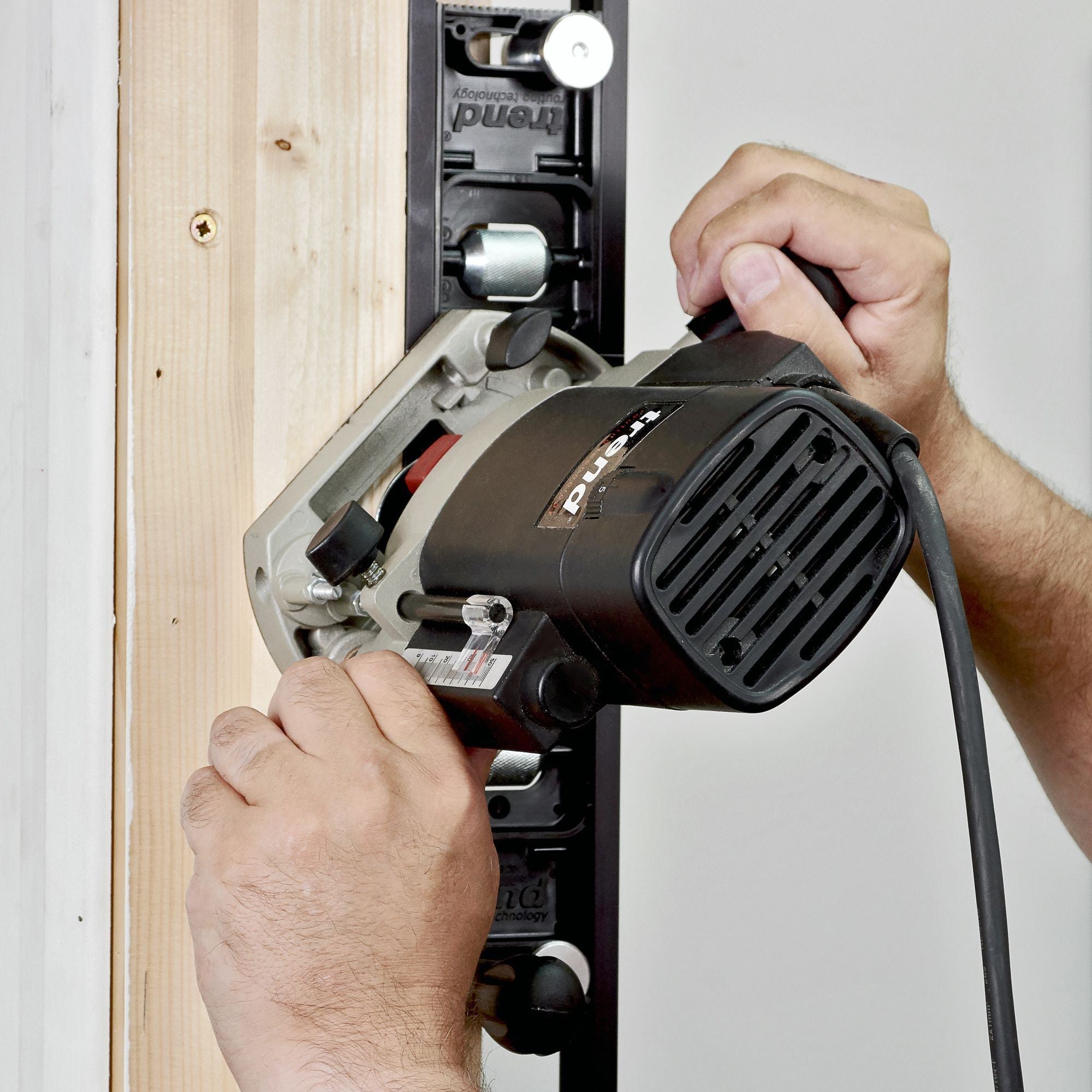

The Trend Skeleton Hinge Jig is a 2 piece adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. Easy to use with minimal setting-up time ensuring that the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results. Supplied with a carry case bradawls and a special 16mm guide bush making it ideal for professional and DIY use.

Features:

Trend H/JIG/C:

It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Fully adjustable apertures for fire door requirements and renovation work
Idea for fitting a new door in an old frame
No need for marking out in the conventional way

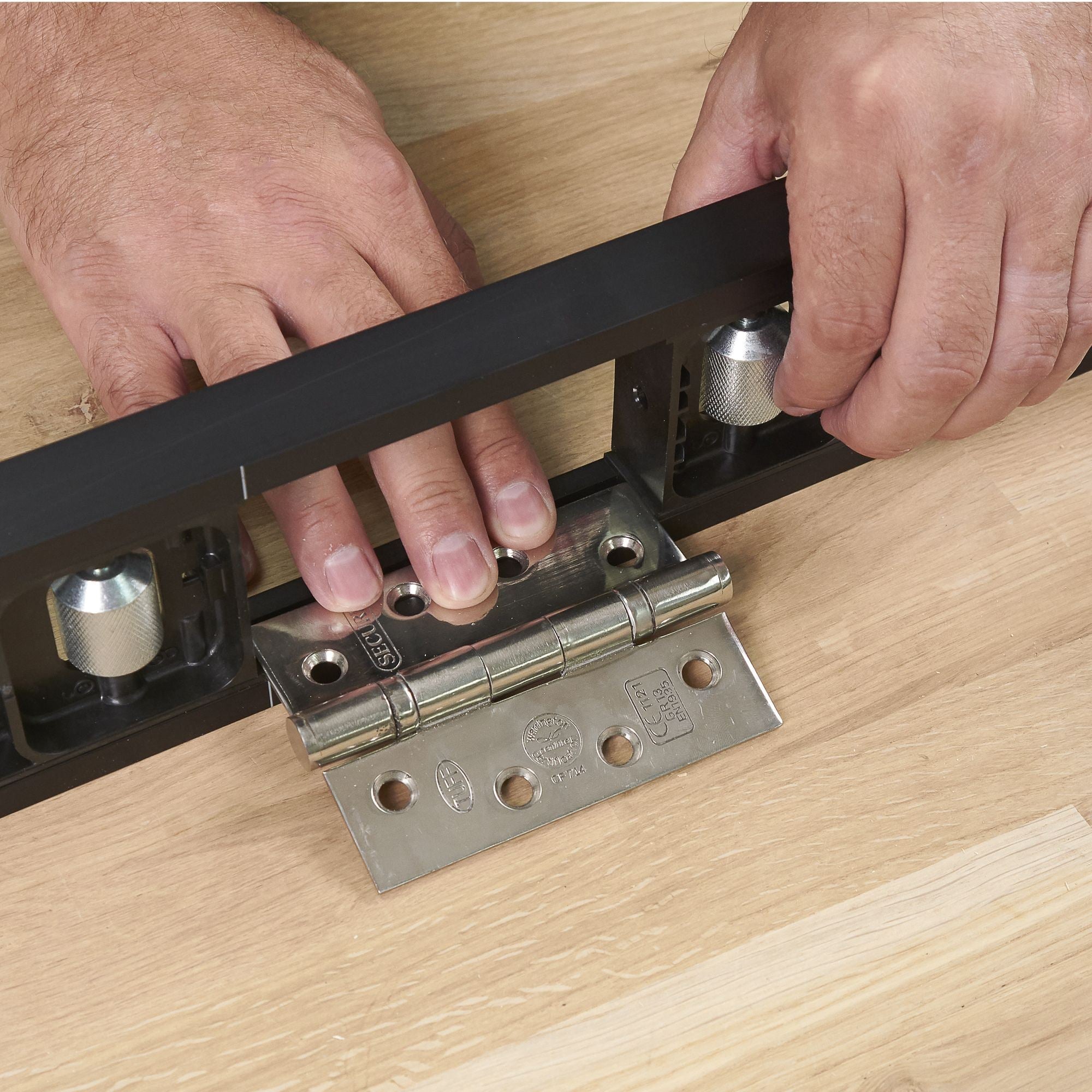

Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length

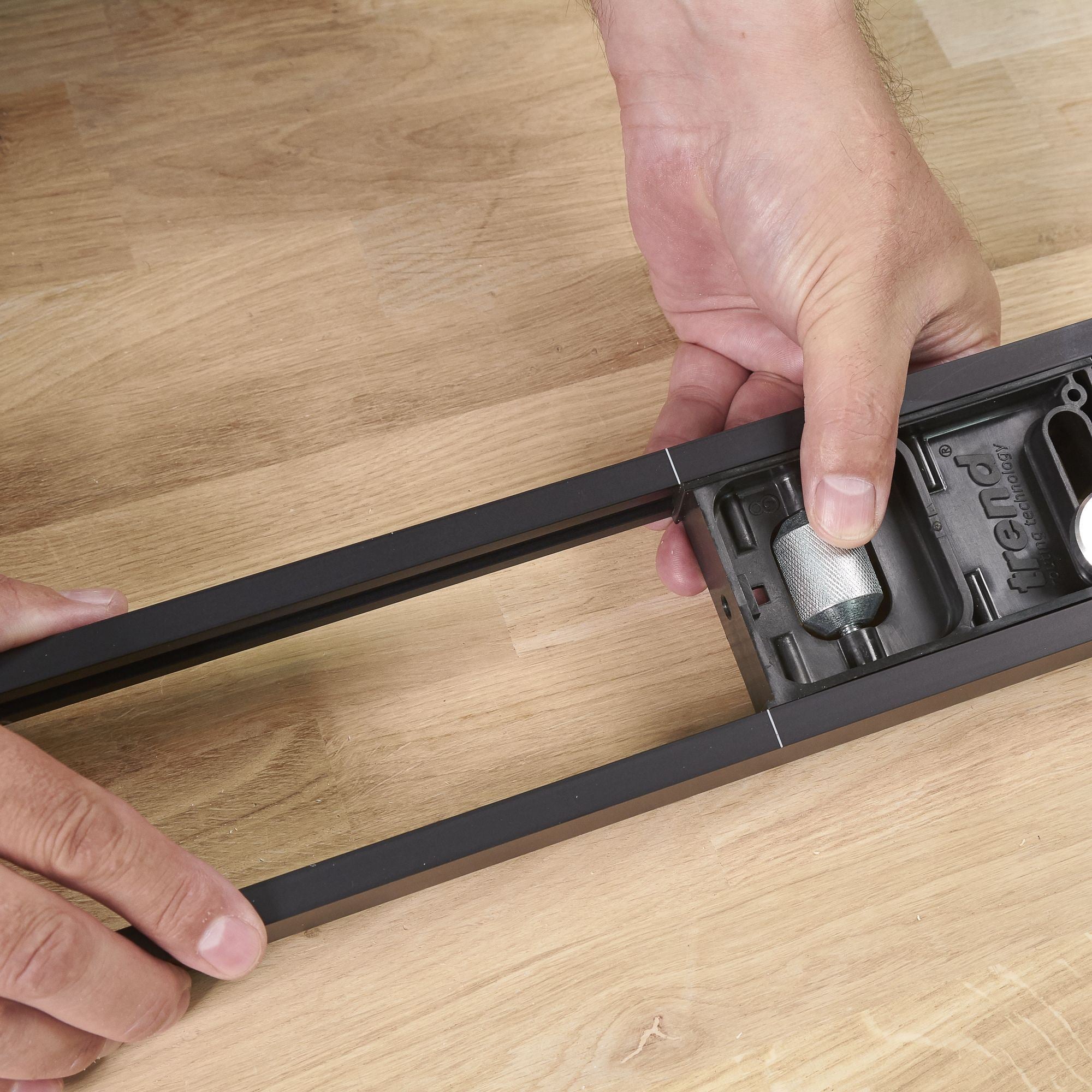

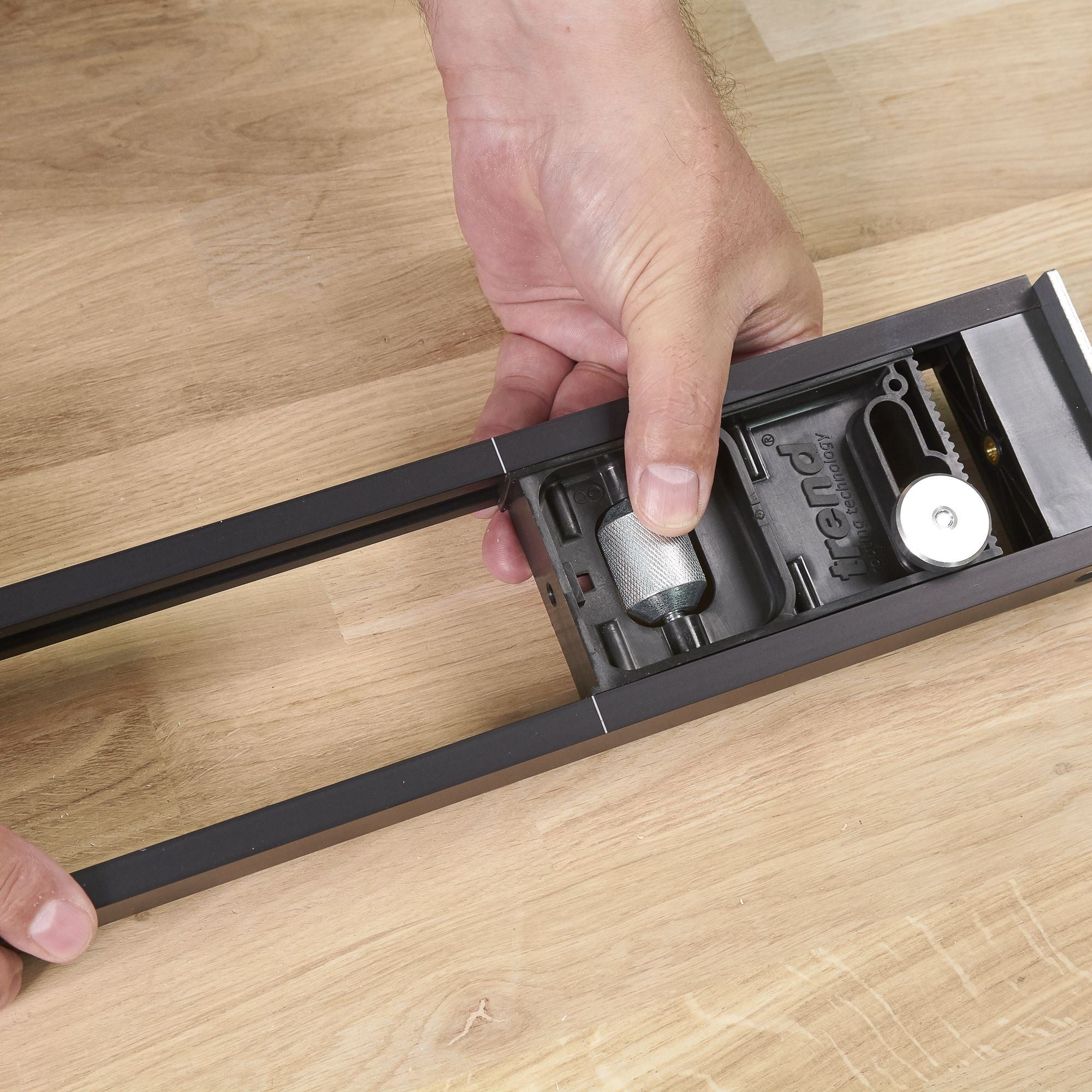

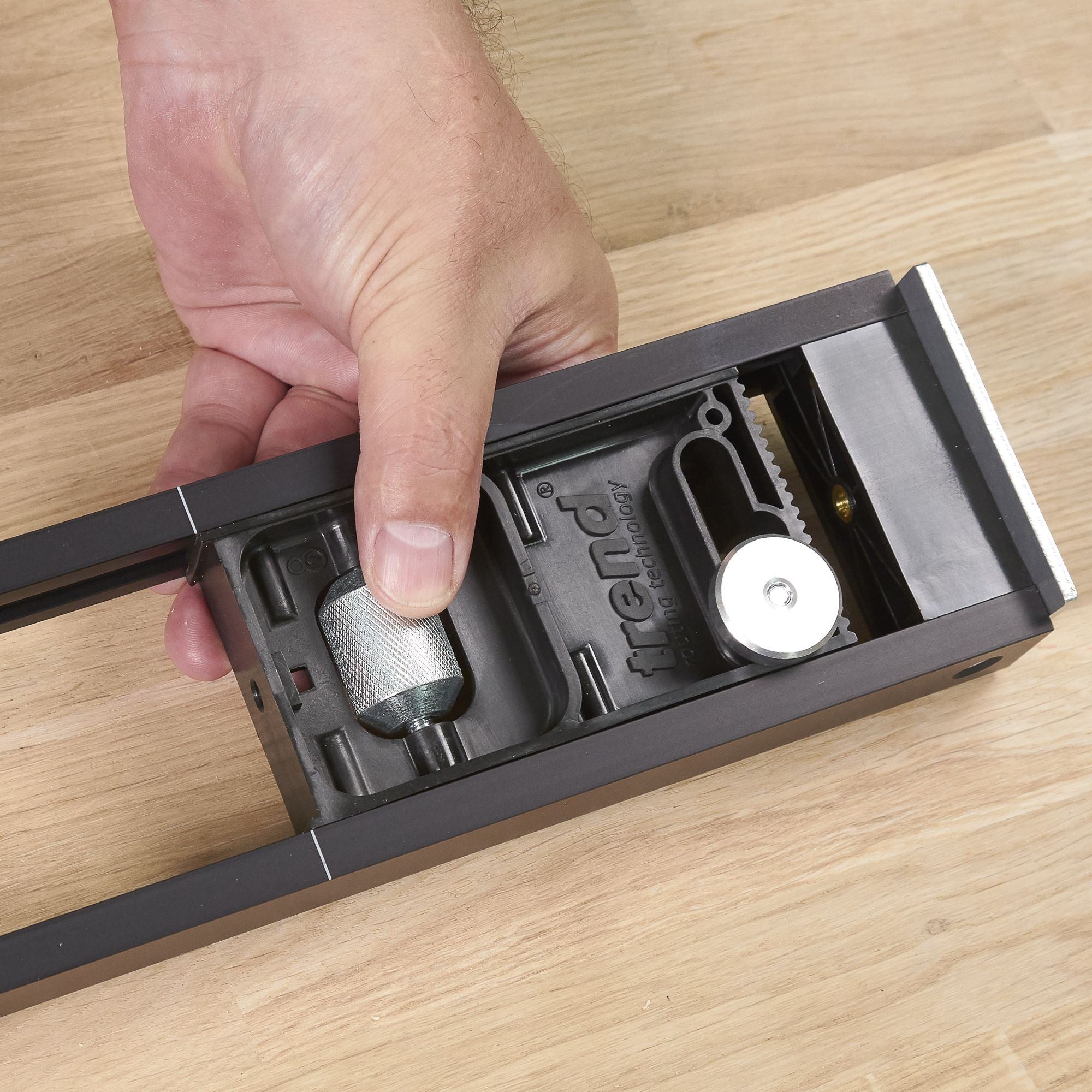

Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
Unibase may be needed
Patent No. GB2285410, GB1106608.1
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

Comes with:

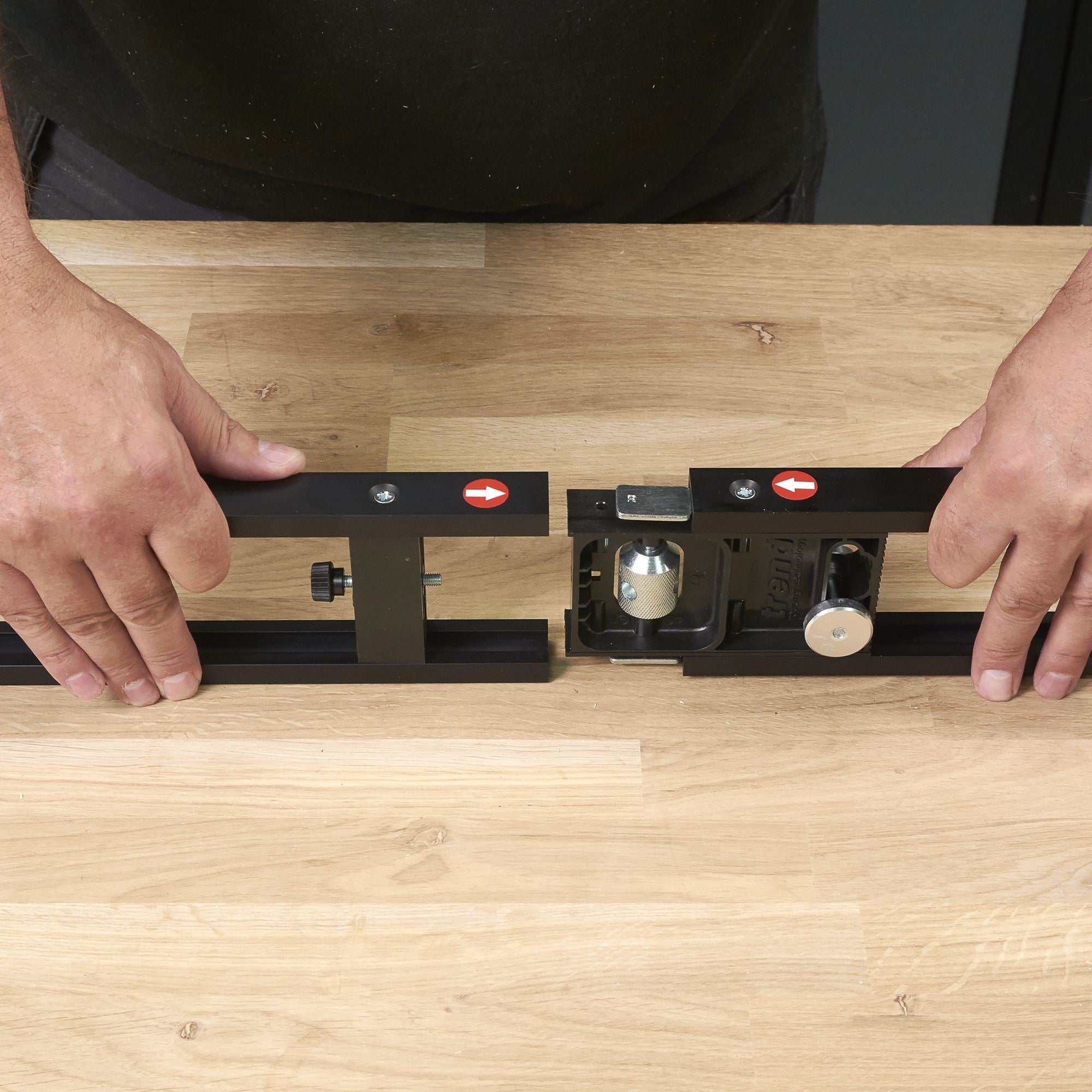

1 x 2 Part Skeleton Hinge Jig
4 x Bradawls
1 x 16mm guide bush
1 x Carry Bag

Product Specification:

Trend H/JIG/C:

Hinge sizes possible:

Length min. 2 5/8″ (67 mm)
Length max. 5″ (127 mm)
Width min. 1/2″ (12.7 mm)
Width max. 1 3/8″ (35 mm)

Door sizes possible:

Height min. 6′ 5″ (1956 mm)
Height max. 2100 mm* (6′ 10″*)
Thickness min. 5/8″ (16 mm)
Thickness max. 2″ (51 mm)
Jig overall length 1956 mm
