Stabila 03520 Cross-line laser LAX 500 G, 12 V system, 7-piece set, with rechargeable battery and charger

Original price was: £402.11.Current price is: £201.06.

SKU: 03520 Tag:
Description

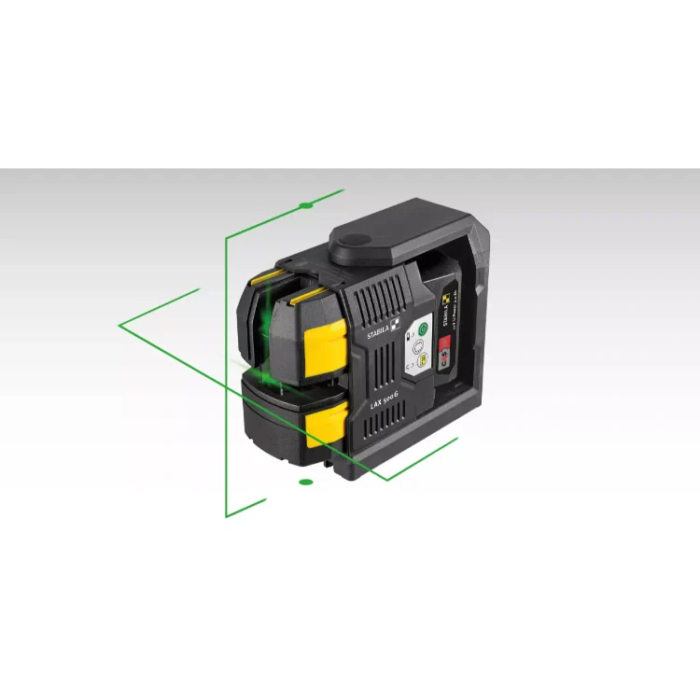

Stabila 03520 LAX 500 G Crossline & Plumb Dots Laser 7pc Kit

Multi-line laser LAX 500 G, 12 V LI-POWER 2.0 Ah CAS rechargeable battery, SC 30 CAS charger, SLB 500 laser base, SWB 10 wall bracket, target plate, carrying case

Discover the powerful LAX 500 G, the cross-line laser with plumb dots and modern rechargeable battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130 ft/40 m. In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications. The laser optics are optimally protected by the proctective housing. STABILA – simply work efficiently!

Features

  • 12 V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes.
  • GREENBEAM technology: direct work on sharp and perfectly visible lines – up to 130 ft/40 m away.
  • High-performance diodes: Vertical line covers almost the entire room.
  • Manual mode: Positioning the laser at any angle with a locked pendulum mechanism.
  • Switchable pulse-modulated lines: compatible for working with line receivers (available as an option).
  • Long operating time: 12 V LI-POWER 2.0 Ah CAS rechargeable battery for up to 20 hours of use.
  • Short charging times: quick recharging in max. 45 minutes.
  • Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage.
  • Removeable laser base allows the ability to work over bottom plate or base track.
  • Flexible positioning: 1/4″ thread, rare-earth magnets and wall bracket.
  • Stable carrying case.
  • Protection rating IP 54 (without rechargeable battery).

Applications

  • In drywall construction: Suspend ceilings together with the wall bracket, transfer layout from the floor to the ceiling, align profile rails, install partitions.
  • For tiling: Lay out the tiling, align and lay floor and wall tiles.
  • In electrical installation work: Mark switches and sockets, align cable ducts horizontally and vertically, align and install lighting.
  • For installation work: Align pipe clamps horizontally and vertically, route cables and heating pipes, install radiators and sanitary facilities.
  • For carpentry and joining work: Assemble kitchen cabinets, align worktops.
  • In window construction: Level window heights.

Technical data

Laser class: 2
Output: < 1 mW
Laser wavelength: 510 – 530 nm
Self-levelling range +/-: 5°
Levelling accuracy +/-: 1/8 in @ 30 ft
Laser beam accuracy (up) +/-: 1/8 in @ 30 ft
Laser beam accuracy (down) +/-: 1/8 in @ 30 ft
Measuring range of visible line: 130 ft
Operating life: 20 h
Protection class: IP 54
Tripod connection: 1/4″
