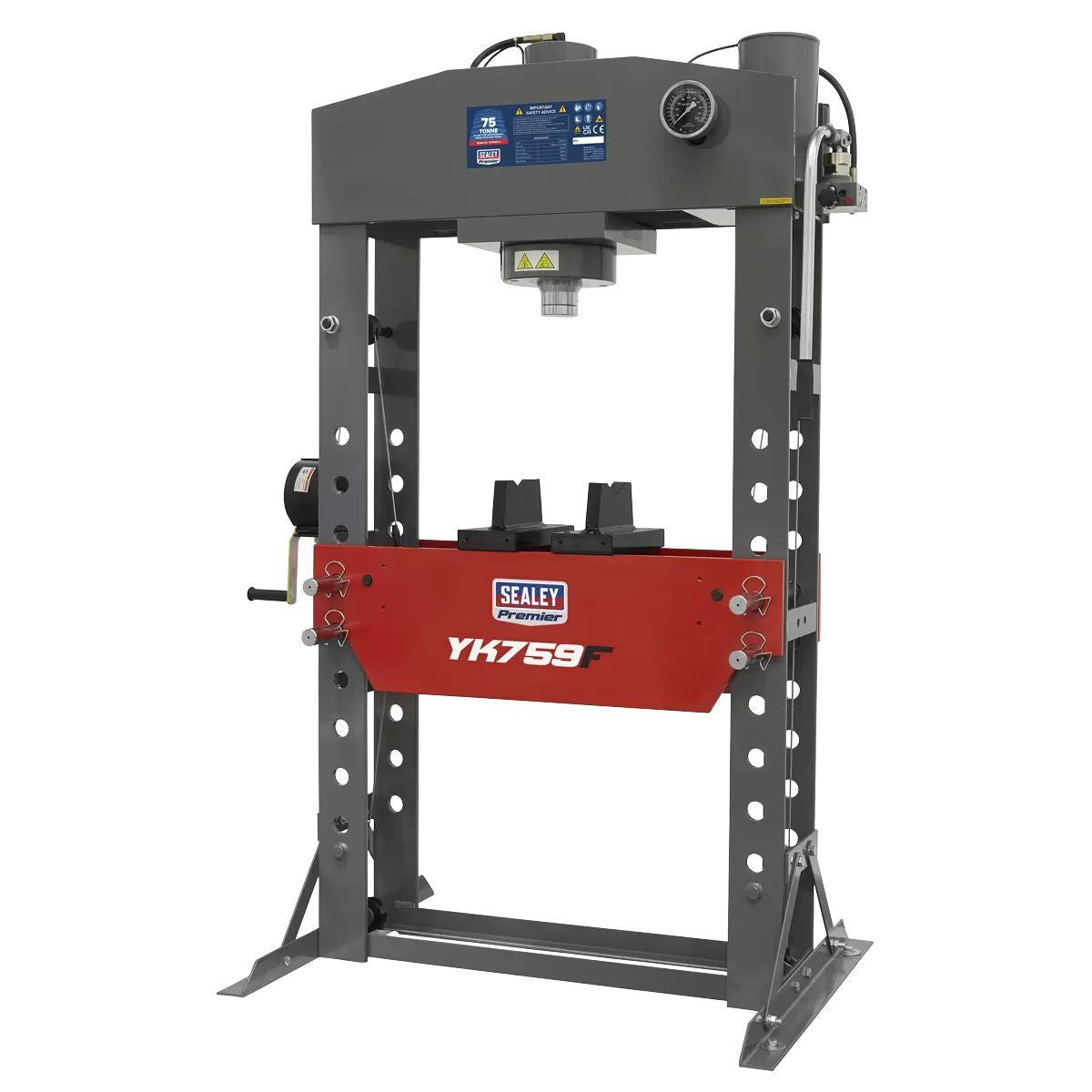

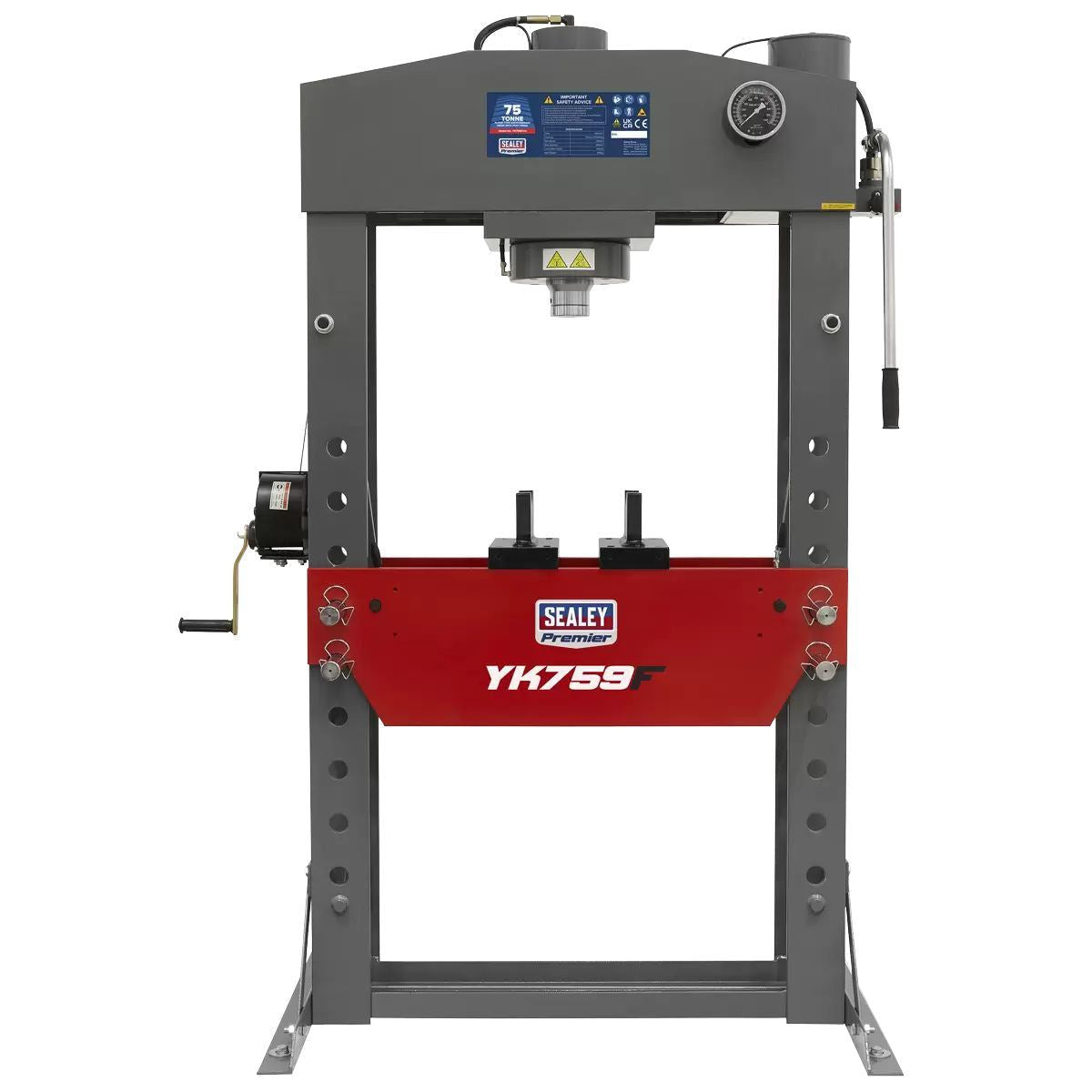

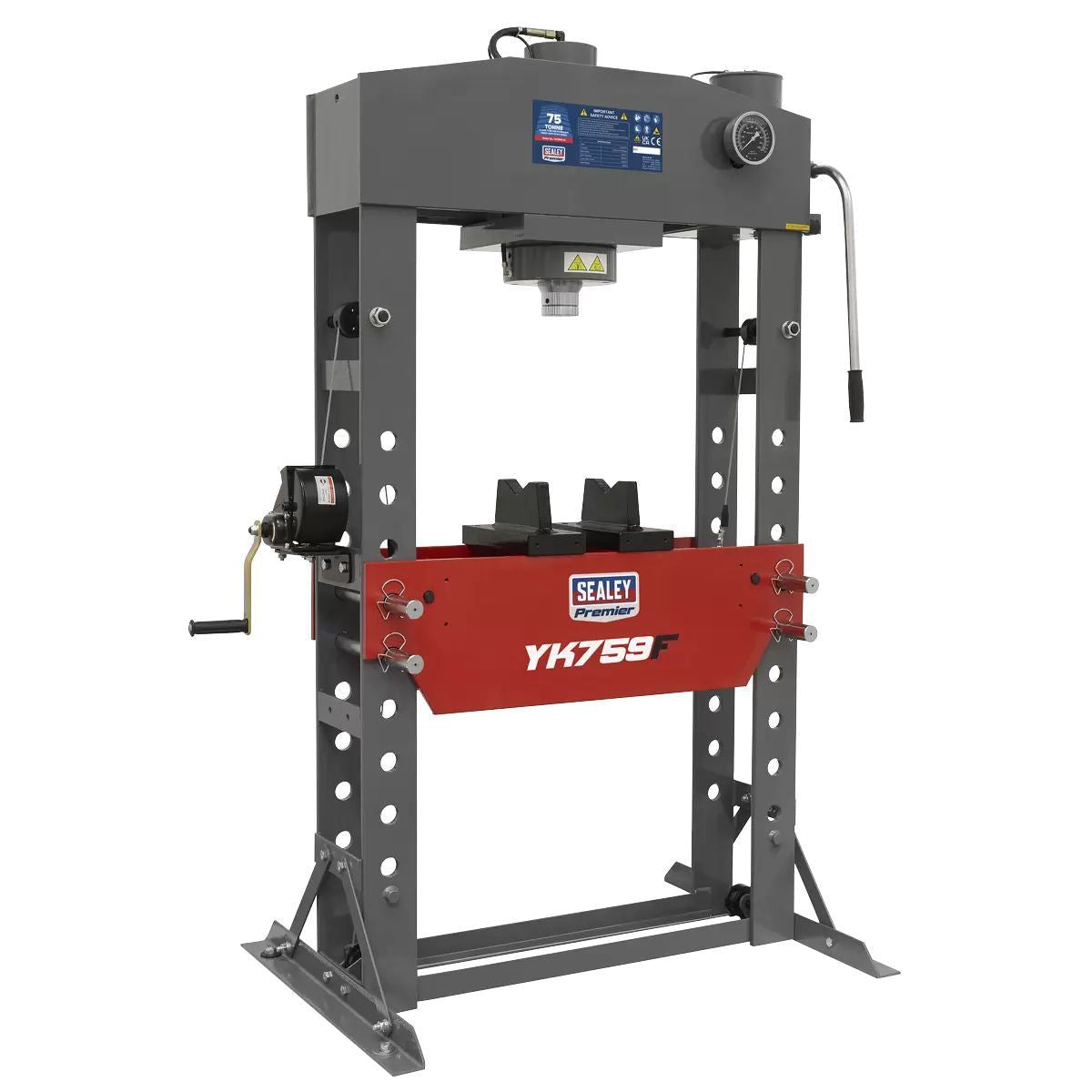

Sealey YK759F Hydraulic Press 75tonne Floor Type

Sealey YK759F Hydraulic Press 75tonne Floor Type

Note:- Please note upon delivery a forklift will be required to unload this product.

Features:

Heavy-duty steel frame construction with 2-speed hydraulic pump unit.
Sliding hydraulic ram assembly gives 260mm of lateral travel for off-centre pressing applications.
Frame head fitted with ram pressure gauge.
Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

Part No: YK759F
Barcode: 5054511718119
Bench or Floor Mounting: Floor
Type: Hydraulic
Capacity: 75tonne
Ram Stroke: 250mm
Lateral Ram Travel: 260mm
Maximum Height – Ram to Table: 884mm
Minimum Height – Ram to Table: 170mm
Optional Accessories:  YKSG75 – Safety Guard, YKPP8 – Press Pin Set
Table Aperture: 251/201mm
Working Table Depth: 279mm
Working Table Width: 800mm
Overall Height: 1925mm
Overall Width:  1560mm
Ram Diameter:  Ø93mm
Gauge Included: Yes
Weight: 435kg

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
