EDCO Magna-Trap 4 Core Tooling – Double Dyma-Dots
Price range: £57.95 through £61.68
Description

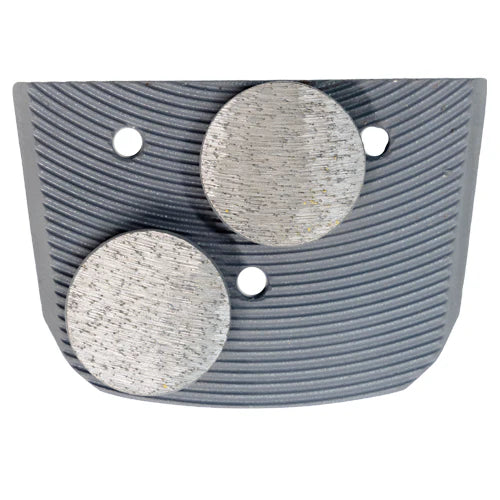

EDCO Magna-Trap 4 Core Tooling – Double Dyma-Dots
*Note: Each purchase includes a complete set, with each set comprising 3 pieces (1 set = 3 pieces)
General-purpose grinding tools for removing sealers, thin mil residential epoxies, brittle thinsets, and more.
Ideal for:
- Removing Sealers, Thin Mil Residential Epoxies, Brittle Thinsets, and more.
- Concrete Surface Profile (CSP) Rating: 1-2
- Tooling Classification: Omni-Directional
Choose appropriate tooling
- Hard Concrete (Red): Softest bond. For use on concrete that contains low amounts of abrasive aggregate.
- Medium Concrete (Grey): Medium bond. General purpose concrete.
- Soft Concrete (Yellow): Hardest bond. For use on Abrasive Concrete (recommended bond for Coastal Areas/Green Concrete).
For use on:
- Magna-Trap Floor Grinders, Single or Dual-Disc Models
- Magna-Trap Turbo Grinders, 7”, 9”, 10” Models
- Classic-Style Grinders retrofitted with Magna-Trap® Multi-Tooling Disc
Technical Specifications
The EDCO Magna-Trap 4 Core Tooling – Double Dyma-Dots are industry-leading, general-purpose grinding attachments designed specifically for EDCO’s Magna-Trap® series of concrete floor grinders and turbo grinders. These omni-directional tools enable contractors to efficiently remove sealers, thin mil epoxies, brittle thinsets, mastics, and waterproof coatings from a wide range of concrete surfaces, leaving a superior, flat finish with minimal scratching and zero gouging.
Product Overview
The Double Dyma-Dots are part of the core four tooling system developed for the Magna-Trap® platform. Each Double Dyma-Dot features a quick-change, magnetic back for fast, tool-free swaps—ideal for both single and dual-disc Magna-Trap floor grinders, as well as 7”, 9”, and 10” Magna-Trap turbo grinders and retrofitted classic floor grinders. Their unique design makes them a standard for concrete prep, renovation, and maintenance jobs demanding highly productive, consistent grinding results.
Key Features
- General Purpose Removal: Removes sealers, thin mil epoxies, mastics, thinsets (yellow only), and waterproof coatings without gouging the surface, creating a smooth, level profile.
- Clean, Smooth Results: Designed to leave only a small amount of fine scratches (Concrete Surface Profile/CSP 1-2) while eliminating the risk of deep trenches or gouges.
- Omni-Directional Cutting: Allows flexibility for use in all directions, supporting both straight and circular grinding passes for consistent coverage.
- Magnetic Quick-Change System: Magna-Trap magnetic backing enables effortless, wedge-less changes between toolings—saving significant time during multi-step projects.
- Bond Options for All Concrete Types:
Performance & Key Benefits
- Wide Application Range: Suitable for prepping floors for overlays, removing buildups prior to refinishing, and smoothing old or patchy slabs for coatings and sealants.
- Uniform, Professional Results: No gouging means less repair work, easier cleaning, and better finishes when recoating, polishing, or densifying concrete.
- Tough, Long-Lasting Construction: High-quality diamonds and durable bonding ensure reliability—especially when matched to the correct concrete type and hardness.
- Time-Saving Service Intervals: Quick tool swaps and minimized interruptions on busy jobsites, increasing daily coverage and project efficiency.
- Eco-Friendly: Less aggressive removal with effective dust collection reduces airborne silica and prolongs floor life.
Best Practice Applications
- Removing sealers, thin epoxy, mastics, or waterproof coatings from warehouse and retail floors.
- Blending patch repairs with existing slab for seamless overlays or decorative coloring.
- Prepping surfaces for stains, new coatings, overlays, or densifier treatments.
- Smoothing newly placed or rain-marked concrete slabs prior to hand finishing or polishing.
Maintenance & Operator Tips
- Before Use: Match the Dyma-Dot bond to slab hardness for best results (soft bond/red for hard concrete, hard bond/yellow for soft/abrasive concrete).
- During Use: Rotate tooling between heads every few hours for even wear and to extend life; monitor for vibration or diminished performance and replace as needed.
- After Use: Clean magnetic backing and multi-tooling disc to ensure full contact and proper magnetic holding power.
- Vacuum Compatible: Always pair with industrial vacuum and dust shroud system for OSHA standard-compliant silica control and operator safety.
- Storage: Keep in clean, dry area, and separate colors/bonds for efficient jobsite matching.
Frequently Asked Questions
Q: How many Double Dyma-Dots are needed per grinder?
A: Single-disc or turbo grinders use 3 per head; dual-disc grinders use 6 (3 per head).
Q: Can these prep for overlays as well as removals?
A: Yes, they level substrate for overlays, remove old build-up, and provide a perfect base CSP 1–2 profile for most polymer/resinous flooring systems.
Q: Is there a risk of gouging concrete or leaving “trenches”?
A: No; the Double Dyma-Dot design prioritizes smooth, scratch-minimal removal for professional, uniform results.
Q: Are single Dyma-Dots still available?
A: No. Single Dyma-Dots have been discontinued—Double Dyma-Dots are the current standard for Magna-Trap tooling.
Conclusion
The EDCO Magna-Trap 4 Core Tooling – Double Dyma-Dots are the trade standard for safe, fast, omni-directional removal of surface coatings, adhesives, and thinsets on concrete floors. With bonds tailored to every slab type, quick-change magnetic mounting, and CSP-friendly profiles, Double Dyma-Dots enable consistent, gouge-free prep for overlays, finishing, and high-end coatings—making them essential for any surface prep pro using an EDCO Magna-Trap grinder.
